Need inside picture of right side handlebar control. Related to the kill switch, Pretty sure mine is wired wrong, solder?, missing apart ?


_________________
Current bikes: H1 69,71,72,76 KH 500, H2 72(2),73,74,75(3) , 77RD 400, 08 KLR 650. 76 KZ 900, Yamaha RZ 500, ihave so many triples gave up listing them.
Have seversl tons of H1/H2/S parts for sale, http://www.triplestuff.net dhg1337@gmail.com
Top
 Profile

III
PostPosted: Mon Aug 12, 2013 4:22 pm
User avatar

Joined: Wed Jun 08, 2011 10:41 pm
Posts: 3489
Location: Mount Vision, NY

Just pick your parts number and click for a pic.

http://3cyl.com/mraxl/partid/list2/oemlist.htm

Part part number = 46132-003
Part Description = CASE ASSEMBLY,RH
Model Count = 5
H1D 73 500 H1 MACH III STREET
H1E 74 500 H1 MACH III STREET
H1F 75 500 H1 MACH III STREET
H2B 74 750 H2 MACH IV STREET
H2C 75 750 H2 MACH IV STREET

_________________
Bad decisions make the best stories.
Top
 Profile

H1FR
PostPosted: Mon Aug 12, 2013 5:38 pm

Joined: Mon Aug 06, 2012 2:57 pm
Posts: 849
Location: Monterey Ca
I just don't know how the wires attach

_________________
Current bikes: H1 69,71,72,76 KH 500, H2 72(2),73,74,75(3) , 77RD 400, 08 KLR 650. 76 KZ 900, Yamaha RZ 500, ihave so many triples gave up listing them.
Have seversl tons of H1/H2/S parts for sale, http://www.triplestuff.net dhg1337@gmail.com
Top
 Profile

kawi3cyl
PostPosted: Tue Aug 20, 2013 1:27 pm
User avatar

Joined: Fri Jun 10, 2011 11:04 am
Posts: 3490
Location: Capitol of Ca, USA

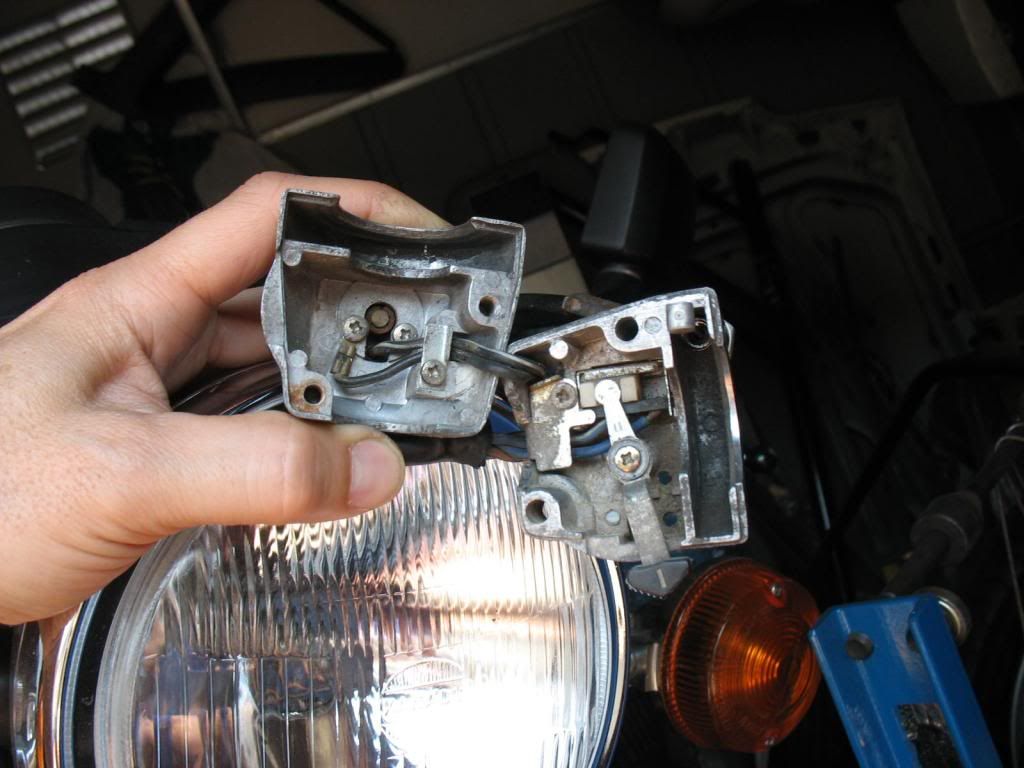

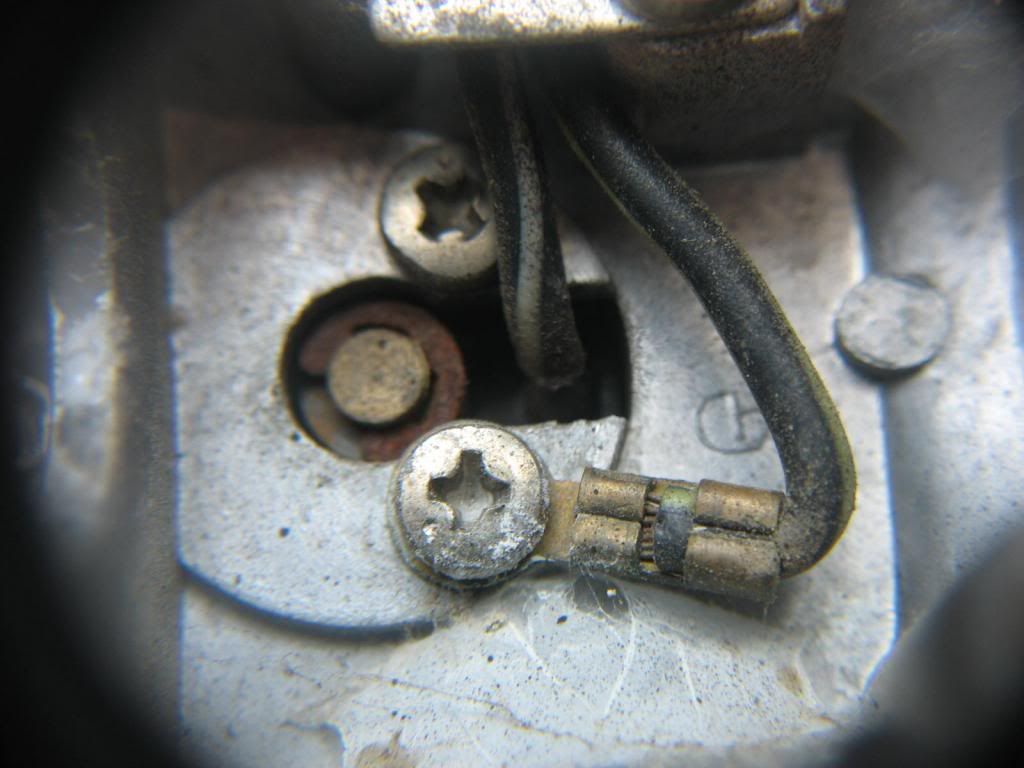

From my 75 H2C that I'm guessing is the same as your 74 H2B. Based on these images, I think your PO
messed up your wiring big time. :think: Nothing connects to that 2nd screw where yours had the BLK/W
wire going to. The wire connects somewhere underneath that plate (sorry, I didn't disassemble my control
beyond this).


_________________
"Only cheat the cheaters, boy - you can't cheat an honest man!" Mordecai Jones - The Flim Flam Man.
Top
 Profile

H1FR
PostPosted: Tue Aug 20, 2013 2:07 pm

Joined: Mon Aug 06, 2012 2:57 pm
Posts: 849
Location: Monterey Ca
^^ thanks for the picture I am pretty sure it solders inside to the switch.

_________________
Current bikes: H1 69,71,72,76 KH 500, H2 72(2),73,74,75(3) , 77RD 400, 08 KLR 650. 76 KZ 900, Yamaha RZ 500, ihave so many triples gave up listing them.
Have seversl tons of H1/H2/S parts for sale, http://www.triplestuff.net dhg1337@gmail.com
Top
 Profile

gaff
PostPosted: Thu Aug 22, 2013 5:36 pm

Joined: Mon Apr 08, 2013 3:39 pm
Posts: 9
That and only the RUN is red, The off is white
